Developer Guide

Table of Contents

• 1. Acknowledgements
• 2. Introduction
• 3. Design
  • 3.1 Architecture
    • 3.1.1 Main Components
    • 3.1.2 Component Interaction
  • 3.2 Ui Component
  • 3.3 Parser Component
  • 3.4 Scheduler Component
  • 3.5 Storage Component
  • 3.6 Command Class
• 4. Implementation
  • 4.1 Switch View Feature
  • 4.2 Find Feature
  • 4.3 Edit Feature
  • 4.4 Appointment Management
• Appendix A: Product Scope
• Appendix B: User Stories
• Appendix C: Non-Functional Requirements
• Appendix D: Instructions for Manual Testing

1. Acknowledgements

• Referenced the SE-EDU AB3 Developer Guide

2. Introduction

MedBot is a Command Line Interface (CLI) application for head nurses to manage patients’ and medical staff’s personal information, and schedule appointments between them.

3. Design

3.1 Architecture

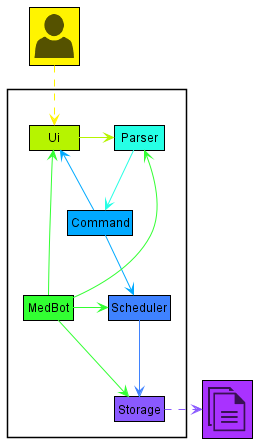

Given below is a quick overview of the main components of MedBot and how they interact with one another.

3.1.1 Main Components

The main class of MedBot is the MedBot class. It is responsible for initialising the other core components of MedBot at application startup and for handling the interactions between these components.

The 4 core components of MedBot are:

• Ui: Handles the UI of MedBot.
• Parser: Parses user inputs and creates Command objects.
• Scheduler: Holds data in memory and contains the methods to read and write to it.
• Storage: Loads data from, and stores data to the hard disk.

In addition, the Command class facilitates the execution of user instructions.

3.1.2 Component Interaction

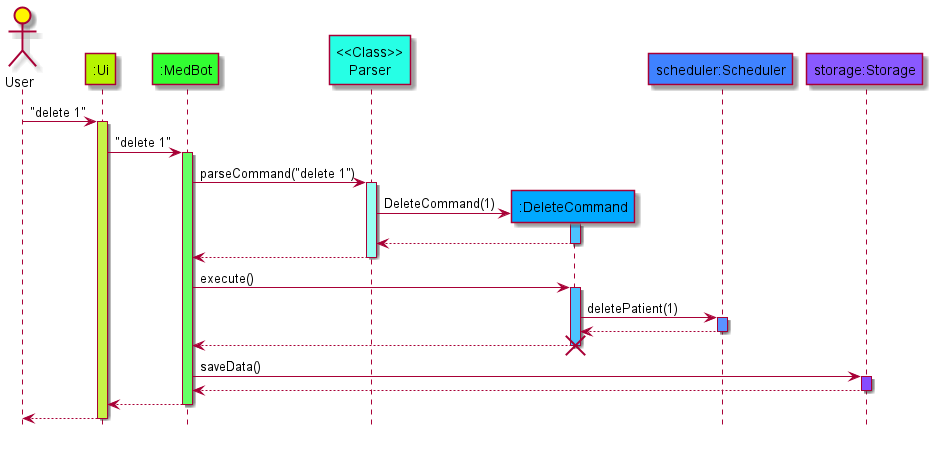

Given below is a simplified sequence diagram of how the core components of MedBot interact with each other when the user inputs the command delete 1.

3.2 Ui Component

The Ui Component is responsible for reading user inputs and printing outputs to users.

Ui Class

The Ui Component is handled by the Ui class. It handles the reading of user inputs and the printing of outputs.

It generates output messages through relying on the following classes.

• PersonUi: Generates output messages for patient- and staff-management commands.
  • PatientUi: Inherits PersonUi to generate output messages for patient-management commands.
  • StaffUi: Inherits PersonUi to generate output messages for staff-management commands.
• SchedulerUi: Generates output messages for scheduler commands.

How the Ui component works

Reading user inputs

When the user inputs a line of text into the terminal, terminated with a newline character, the line will be read by the readInput() method of the Ui class which will return the String to be parsed by the Parser Component

Printing outputs

• After user input is parsed by Parser, depending on the current viewType, the Ui will call methods from different Ui subclasses
  • When viewType is PATIENT_INFO, PatientUi methods are called.
  • When viewType is MEDICAL_STAFF_INFO, StaffUi methods are called.
  • When viewType is SCHEDULER, SchedulerUi methods are called.

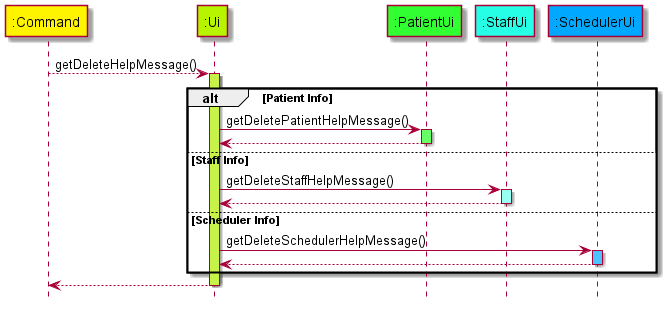

Given below is a sequence diagram of how the Ui component works after the Parser parses help delete input given by a user.

3.3 Parser Component

The Parser Component is responsible for parsing the user input and returning the corresponding Command class object to be executed.

Given below is a partial class diagram to better illustrate the Parser Component:

How the Parser component works:

• After getting the user input, MedBot calls the parseCommand(userInput) method of the Parser class to parse the input.
• Depending on the current MedBot view, the Parser class then calls the ParseXYZCommand() method of the view specific parser XYZCommandParser (XYZ is a placeholder for the current view, namely Patient, Staff and Scheduler).
• The XYZCommandParser then determines the type of command that the user input corresponds to and calls the corresponding parseABCCommand() method which creates and returns the corresponding Command object (ABC is a placeholder for the command type, e.g. AddPatient, DeleteStaff, ListAppointment).
• The methods in ParserUtils are used by the Parser and XYZCommandParser classes to process some parts of the user input.

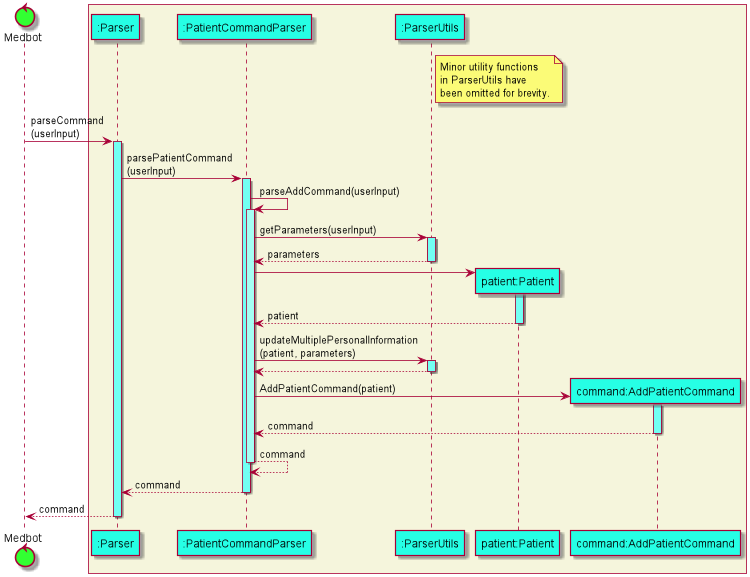

The sequence diagram below better illustrates the working process described above:

(User is trying to add a patient’s information in the PatientInfoView)

3.4 Scheduler Component

The Scheduler Component is responsible for the storage and modification of patient, staff and appointment information.

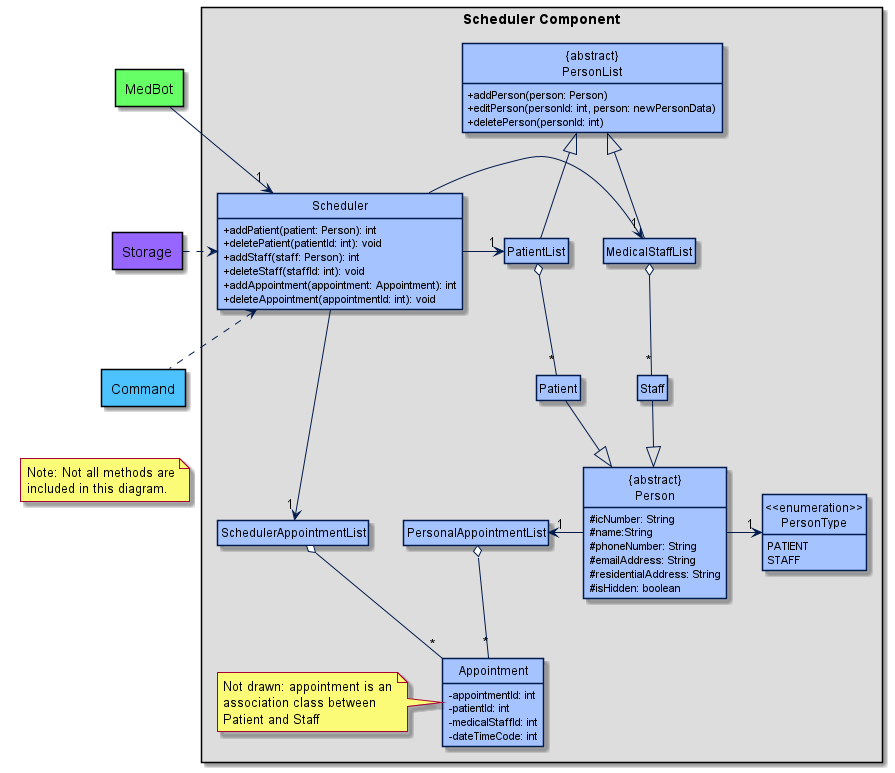

Here is a partial class diagram to better illustrate the Scheduler Component.

Scheduler Class

The Scheduler class consists of 3 internal lists, patientList, medicalStaffList and schedulerAppointmentList, that store patient, staff and appointment information respectively. It has various public methods for the viewing and modification of the information stored in the lists, and for the interfacing between the Scheduler and Storage Components. A Scheduler class object is instantiated upon MedBot startup.

How the Scheduler component works:

• When MedBot calls the .execute(Scheduler, Ui) method of a Command object, a corresponding method of the Scheduler object will be called.
• This method will then view or modify the patient, staff or appointment information depending on the command.

For example:

• When the .execute(Scheduler, Ui) method of an AddStaffCommand object is called, the addStaff(Person) method of the Scheduler object will be called.
• The addStaff(Person) method will then add the Person to the medicalStaffList

3.5 Storage Component

The Storage Component is responsible for the persistent storage of the personal information of all patients and medical staff, and appointment details between the two parties.

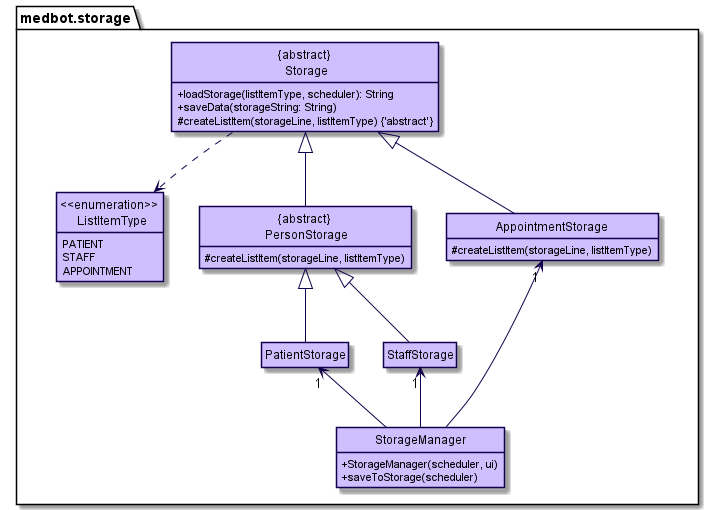

Here is a partial class diagram to better illustrate the Storage Component:

StorageManager Class

The StorageManager class performs the responsibilities of the Storage Component. It consists of a PatientStorage, a StaffStorage and an AppointmentStorage class object. The PatientStorage, StaffStorage and AppointmentStorage classes are subclasses of the Storage class and are responsible for the storage of patient, staff and appointment information respectively.

How the Storage component works:

Initialization

• When MedBot is launched, MedBot initializes a StorageManager class object.
• MedBot then calls the initializeStorages() method of the StorageManager class object which initializes the PatientStorage, StaffStorage and AppointmentStorage class objects.
• These three Storage sub-classes will create a MedBotData directory in the current working directory if MedBotData does not already exist.
• Each of the three Storage classes will create their respective storage text files in MedBotData if they do not exist.
  • PatientStorage will create patient.txt in `MedBotData
  • StaffStorage will create staff.txt in `MedBotData
  • AppointmentStorage will create appointment.txt in `MedBotData
• If the storage files exist, the respective Storage sub-class will ignore it.

Loading data:

• StorageManager calls the loadStorage() method of the PatientStorage, StaffStorage and AppointmentStorage.
• Each of the 3 Storage sub-class objects then reads their corresponding storage files and stores the information in memory into the corresponding lists of MedBot.
• If there are errors in any of the storage files, an error message will be output to inform the user of the specific line and file which has erroneous data

Saving data:

• After a command is executed, MedBot calls the saveToStorage() method of the StorageManager class object.
• StorageManager then calls the saveData() method of the PatientStorage, StaffStorage and AppointmentStorage objects.
• Each of the 3 Storage sub-class objects then writes the storage data into their respective data text files.

Format of stored data for patients and medical staff

The storage files patient.txt and staff.txt follow the same storage format when storing data. Each line of these two storage files corresponds to the personal information of a patient or medical staff respectively:

Format:

ID | NRIC | NAME | PHONE_NUMBER | EMAIL | ADDRESS | HIDE_STATUS

Example:

3 | S8367812K | Sasha Alexander | 91238765 | X | Mauville City 2nd Street | S

Notes:

• X denotes that the field is empty
• HIDE_STATUS refers to whether the patient/staff is to be shown or hidden
  • S means to “show”
  • H means to “hide”

Format of stored data for appointments

Each line of appointment.txt corresponds to the details of an appointment.

Format:

ID | DATE_TIME | PATIENT_ID | STAFF_ID

Example:

7 | 051221 0900 | 2 | 2

3.6 Command Class

The Command class and its subclasses are responsible for handling the execution of user instructions.

Each Command subclass contains:

• An isExit() method which return true only if it is an Exit Command.
• An execute(Scheduler, Ui) method which performs the specified user instruction and prints the output message to the user.

Some Command subclasses also contain attributes specific to that subclass.

• E.g., the deletePatientCommand contains a personId attribute that specifies the ID of the patient that is to be deleted from MedBot.

There are 3 categories of commands:

1. General Commands for MedBot navigation and accessing help.
2. Person Commands which are divided into:
   1. Patient Commands for patient management in the Patient Management view.
   2. Staff Commands for staff management in the Staff Management view.
3. Appointment Commands for appointment management in the Scheduler view.

Given below is the complete list of commands and their categories:

Command Name	Type
Help Command	General
Switch Command	General
Get View Command	General
Exit Command	General
Add Person Command	Person
Delete Person Command	Person
View Person Command	Person
List Person Command	Person
Edit Person Command	Person
Find Person Command	Person
Hide Person Command	Person
Show Person Command	Person
Add Appointment Command	Appointment
Delete Appointment Command	Appointment
View Appointment Command	Appointment
List Appointment Command	Appointment
Edit Appointment Command	Appointment
Find Appointment Command	Appointment

4. Implementation

This section describes some noteworthy details on how certain features are implemented.

4.1 Switch view feature

Implementation

The switch view mechanism is heavily linked to the Parser class. By having a ViewType enumeration property in Parser, the view of the console can be switched by executing the appropriate SwitchCommand class, which modifies the corresponding ViewType of the Parser. The 3 possible views and the corresponding user input commands are as follows:

• switch p or switch 1 - switches to the Patient Management view.
• switch m or switch 2 - switches to the Staff Management view.
• switch s or switch 3 - switches to the Scheduler view.
• switch - will switch to another view depending on the current view in the order shown below:

Patient Management –> Staff Management –> Scheduler –> Patient Management

Each command calls the Parser.setViewType(ViewType) method, which will set the corresponding ViewType property in the Parser class. Additionally, the Ui.clearConsoleFromIde() method will be evoked, which performs a pseudo clear of the console before printing a message that indicates the user has switched view.

Design Considerations:

Aspect: How console is cleared:

• Alternative 1(Current Choice)
  • Perform a pseudo-clear using multiple System.lineSeparator() to move the current console outputs upwards.
    • Pros: Easy to implement, system independent
    • Cons: Only works for terminals up to a certain size (bigger terminals can still see previous console outputs)
  • Perform an actual clear using the ProcessBuilder / Runtime class in java.
    • Pros: Size of terminal doesn’t matter since it actually clears the console.
    • Cons: More complex implementation, need to consider different sets of implementation for different OSes, does not work on IDE.

4.2 Find feature

Functionality

This command will find a list of Person that match the given attributes in a table format.

Implementation

The find feature is facilitated by the FindPersonCommand class. It extends from Command class and overrides the execute() method to achieve the desired functionality.

The example below gives a direction on how this command behaves.

1. User executes the find n/John command. The Parser#parseCommand() method will parse this command and eventually returns a new FindPatientCommand() object.

2. The MedBot#interactWithUser() method will run the execute() method in the new FindPatientCommand() object.

3. The execute() method will call PersonList#findPersons() method with the parameter n/John passed in.

4. PersonList#findPersons() will check all the persons list and returns all Person in the list whose name contains the string john. The attribute match is case-insensitive.

5. The filtered Person list is then passed into the Ui class to be displayed into a table format through Ui#getFindPatientsMessage().

4.3 Edit feature

Functionality

This command will edit a specified Person object with the attributes given in the command.

Implementation

The edit feature is facilitated by the EditPersonCommand class. It extends from Command class and overrides the execute() method to achieve the desired functionality.

The example below gives a direction on how this command behaves.

1. User executes the edit n/John command when the attribute Parser#viewType is PATIENT_INFO. The Parser#parseCommand() method will parse this command and eventually returns a new EditPatientCommand() object.

2. The MedBot#interactWithUser() method will run the execute() method in the new EditPatientCommand() object.

3. The execute() method will call PersonList#editPerson() method with the new Person object having the parameter n/John passed in. (All other attributes of the object are set to null)

4. PersonList#editPerson() will attempt to replace all attributes of the old Person object with the non-null attributes given in the new Person.

5. The edited Person is then passed into the Ui class to be displayed throughUi#getEditPatientMessage().

4.4 Appointment management

Functionality

The appointment management feature is designed to allow head nurses to schedule appointments between medical staff and patients while ensuring that there are no appointment clashes for both staff and patients.

Below is a list of key design considerations for this feature:

• Upon adding/editing an appointment, MedBot will check if the new appointment clashes with an existing appointment and prevent such additions/edits.
• Users should be able to edit the date/time of appointments to reschedule appointments, or to fix mistakes.
  • Users should also be able to change the staff involved in that appointment for cases where the original staff is not available, or to fix mistakes.
  • Users should also be able to change the patient involved in that appointment to allow for the rearranging of appointments, or to fix mistakes.
• Users should be able to view a list of all appointments in the system.
• Users should be able to view a list of all appointments for a particular patient/staff.

Implementation

Appointment management is performed by the Scheduler class and involves the storage and modification of Appointment class objects. Appointments are managed on an hourly basis.

The Appointment class is an association class between Patient and Staff, with additional appointmentId and dateTimeCode attributes. It is stored in the SchedulerAppointmentList class object in the Scheduler class and in PersonalAppointmentList class objects in each Person class object.

The SchedulerAppointmentList object keeps track of all appointments in the system. This allows for the viewing of all appointments in the system. The object consists of a HashMap that stores Appointment objects with their appointmentId as their key, this prevents the system having multiple Appointment objects of the same appointmentId.

The PersonalAppointmentList object in each Person class object keeps track of the appointments of that person. This allows for the viewing of all appointments of that person. The object consists of a TreeSet that stores Appointment objects with their dateTimeCode as the comparable value. This prevents the system from adding clashing appointments to a patient/staff and allows their appointments to be listed by their date.

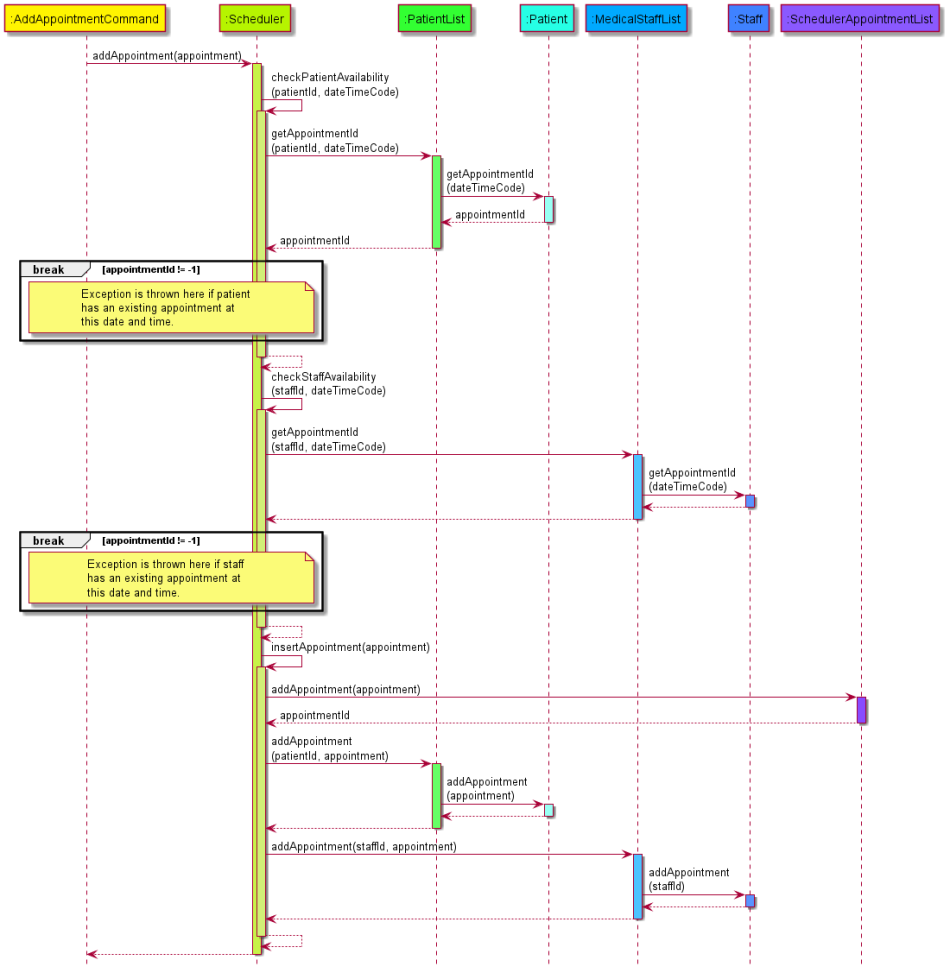

Below is a simplified sequence diagram of the addAppointment(Appointment) method in the Scheduler class:

Appendix A: Product scope

Target user profile

Head nurses who are fast typists or prefer using a Command Line Interface (CLI) instead of a Graphical User Interface (GUI) for their daily jobs

Value proposition

1. Easily manage patient and medical staff information.
2. Easily schedule and manage appointments between patients and staff.

Appendix B: User Stories

Version	As a …	I want to …	So that I can …
v1.0	new user	see usage instructions	refer to them when I forget how to use the application
v1.0	user	add a new patient’s information	track new patients admitted to the hospital
v1.0	user	remove a patient’s information	discharged patients will no longer be tracked by the system
v1.0	user	edit a patient’s information	rectify data entry errors or reflect changes in personal details
v2.0	user	add appointment timeslots for medical staff	easily administer their visiting hours
v2.0	user	be informed if there are any conflicting visiting timings for medical staff	reschedule to more appropriate timings.
v2.0	user	edit appointment timeslots for medical staff	account for changes in schedule of the medical staff
v2.0	user	see all available appointment timeslots for medical staff	know to not assign any conflicting timings
v2.0	user	filter appointments by date/time	decide how to assign new appointments more quickly

Appendix C: Non-Functional Requirements

1. Should work on Windows, Linux, or OS-X as long as it has Java 11 or above installed.
2. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
3. Should be able to hold up to a thousand appointments and patient/staff records without any noticeable decrease in performance.

Appendix D: Instructions for manual testing

Below are instructions to perform manual testing of the application. Please refer to the User Guide for more details on the usage of the various commands.

Launch and exit

1. Launch
   1. Please follow the instructions in the Quick Start Guide to launch the application.
2. Exit
   1. Enter exit to quit MedBot.

Switching Views

1. Switching between the different views of MedBot, in any view
   1. Test case: switch
      Expected: MedBot will switch to the next view. The views switch in this order, and loop back:
      Patient Management –> Staff Management –> Scheduler –> Patient Management
2. Switching from other views to Staff Management view specifically

   1. Test case: switch m when in Patient Management view or Scheduler view
      Expected: MedBot will switch to Staff Management view, and print:


         ___ _____ _   ___ ___
        / __|_   _/_\ | __| __|
        \__ \ | |/ _ \| _|| _|
        |___/_|_/_/_\_\_| |_|
        |_ _| \| | __/ _ \
         | || .` | _| (_) |
        |___|_|\_|_|_\___/    __
        \ \ / /_ _| __\ \    / /
         \ V / | || _| \ \/\/ /
          \_/ |___|___| \_/\_/
       You are now in the Staff Management view.


3. Switching view to the current view
   1. Test case: switch 3 when in the Scheduler view
      Expected: View remains the same, prints: You are already in the Scheduler view.
4. Invalid switch commands
   1. Test case: switch 100, switch abc, …
      Expected: View remains the same, prints: Invalid view type code.

Get current view

1. Get the current view type of MedBot
   1. Test case: get view when in the Scheduler view
      Expected: You are currently in the Scheduler view.

Accessing user guide

1. Using help in the Scheduler view
   1. Test case: help in Scheduler view.
      Expected:

      Here is the list of commands:

      help
      add
      delete
      edit
      view
      list
      find
      switch
      get view
      exit

      To view more information about each command and their respective command formats, type:
      help [COMMAND]

      *Note that all commands will remove any '|' inputs for format parsing purposes.
      For expected output examples, please refer to the actual user guide.



2. Getting view specific help for a specific command
   1. Test case: help add in Patient Management view
      Expected:

       Adds a patient to the patient list.
       Format:
       add i/PATIENT_IC [n/NAME] [p/PHONE_NUMBER] [e/EMAIL] [a/ADDRESS]


3. Invalid help usage
   1. Test case: help abc in any view
      Expected: Unable to parse command.

Patient/Medical Staff Information Commands

• The commands for Patient Management view and Staff Management view are the same, but apply to patients and staff respectively. Patient Management view examples will be used here, but feel free to test the same commands for Staff Management view.
• Note that the Patient ID/Staff ID generated is dependent on the existing patients/staff information in MedBot.
• The expected output of the test cases below assumes that the commands are executed in the order that they are presented in this guide.

Adding a patient

1. Add a patient to the patient list with all details filled.
   1. Test case: add i/S7812345X n/John Doe p/87654321 e/john.doe@gmail.com a/John Street, block 1234, #01-01
      Expected:

       Added patient with Patient ID: 1
       IC: S7812345X
       Name: John Doe
       H/P: 87654321
       Email: john.doe@gmail.com
       Address: John Street, Block 1234, #01-01


2. Add a patient to the patient list with some details filled.
   1. Test case: add e/jimbob@hotmail.com n/jIm boB
      Expected:

       Added patient with Patient ID: 2
       IC:
       Name: Jim Bob
       H/P:
       Email: jimbob@hotmail.com
       Address:


   2. Test case add n/Raven Darkholme i/S8912345A
      Expected:

       Added patient with Patient ID: 3
       IC: S8912345A
       Name: Raven Darkholme
       H/P:
       Email:
       Address:


3. Add a patient using an invalid attribute specifier
   1. Test case (Invalid command): add h/
      Expected: "h/" is not a valid attribute specifier
4. Add a patient with an NRIC that already exists in MedBot
   1. Test case (Invalid command): add i/S7812345X
      Expected: The patient with IC S7812345X is already in the record.

Delete a patient

1. Delete an existing patient from the list.
   1. Test case: delete 3
      Expected: Patient with ID 3 deleted from system.
2. Delete a non-existent patient from the list.
   1. Test case: delete 4
      Expected: No Patient with ID 4 found.
3. Invalid usage of delete
   1. Test case (Invalid command): delete asd
      Expected: ID not specified or not a positive number.

View a patient’s information

1. View an existing patient’s information.
   1. Test case: view 2
      Expected:

      Here's the requested patient information:

      Patient ID: 2
      IC:
      Name: Jim Bob
      H/P:
      Email: jimbob@hotmail.com
      Address:


2. View a non-existent patient’s information.
   1. Test case: view 89
      Expected: No Patient with ID 89 found.

Hide a patient

• Refer to this to understand how hide affects list.
• Feel free to test hide, show and list together.

1. Hide a patient in the list.
   1. Test case: hide 2
      Expected: The patient with ID 2 is now hidden.
   2. Test case: hide 1
      Expected: The patient with ID 1 is now hidden.
2. Invalid usage of hide
   1. Test case (Invalid command): hide ab
      Expected: ID not specified or not a positive number.

Show a patient

• Refer to this to understand how show affects list
• Feel free to test hide, show and list together.

1. Show a previously hidden patient in the list.
   1. Test case: show 1
      Expected: The patient with ID 1 is now not hidden.
2. Invalid usage of show
   1. Test case: show ab
      Expected: ID not specified or not a positive number.

List information of all current patients

• list shows all non-hidden patients.
• list -h shows all hidden patients.

1. List all non-hidden patients

   1. Test case: list
      Expected:

       Here is a list of all not-hidden patients:
       For full details of each patient, please use the command "view PATIENT_ID"
       -----------------------------------------------------------------------------------------------------
       |  ID  | IC Number |         Name         | Phone No. |        Email         |       Address        |
       -----------------------------------------------------------------------------------------------------
       | 1    | S7812345X | John Doe             | 87654321  | john.doe@gmail.com   | John Street, Bloc... |
       -----------------------------------------------------------------------------------------------------


2. List all hidden patients

   1. Test case: list -h
      Expected:

       Here is a list of all hidden patients:
       For full details of each patient, please use the command "view PATIENT_ID"
       -----------------------------------------------------------------------------------------------------
       |  ID  | IC Number |         Name         | Phone No. |        Email         |       Address        |
       -----------------------------------------------------------------------------------------------------
       | 2    |           | Jim Bob              |           | jimbob@hotmail.com   |                      |
       -----------------------------------------------------------------------------------------------------


3. Invalid usage of list
   1. Test case: list -l
      Expected: Parameter type specified is not valid.

Edit information of a patient

1. Edit an existing patient’s personal information, selected by ID.
   1. Test case: edit 1 p/99999999 n/John Xavier Doe
      Expected:

       The information of patient with ID 1 has been edited to:

       Patient ID: 1
       IC: S7812345X
       Name: John Xavier Doe
       H/P: 99999999
       Email: john.doe@gmail.com
       Address: John Street, Block 1234, #01-01


2. Edit a non-existent patient’s personal information
   1. Test case: edit 898 n/BOb
      Expected: No Patient with ID 898 found.

Find patients based on attributes

1. Search for non-hidden patients with NRIC containing “12345”
   1. Test case: find i/12345
      Expected:

       Here is a list of matched patients:
       -----------------------------------------------------------------------------------------------------
       |  ID  | IC Number |         Name         | Phone No. |        Email         |       Address        |
       -----------------------------------------------------------------------------------------------------
       | 1    | S7812345X | John Xavier Doe      | 99999999  | john.doe@gmail.com   | John Street, Bloc... |
       -----------------------------------------------------------------------------------------------------


2. Invalid usage of find
   1. Test case: find g/
      Expected: The specifier g/ is invalid.

Scheduler Commands

Prerequisites

• Run the following commands before running the Scheduler commands to populate the patient and medical staff lists with more data:
  1. switch 1
  2. add n/Sasha Alexander i/S8367812K p/91238765 a/Mauville City 2nd Street
  3. switch 2
  4. add n/Doctor One i/S8754321B p/81819191 a/American Gardens Building West 81st Street e/doctorone@hospital.net
  5. add n/Nurse One i/S9171234D p/91234566 a/Petalburg City Route 103 e/nurseone@hospital.net
  6. switch 3

Adding an appointment

• Adds an appointment to the scheduler list. MedBot will check if there are any clashes in the appointments and display and error message if there are any.
• The format for DATE_TIME is DDMMYY hhmm. I.e. 9 February 2021, 0800HRS should be written as 090221 0800
• Do note that the appointments are managed at an hourly basis. For example, any appointments set to any time between 0800HRS and 0859HRS will be treated as an appointment from 0800HRS to 0859HRS. No subsequent appointment can then be scheduled for either the patient and the medical staff during that window.

1. Add a valid appointment with no clashes
   1. Test case: add p/1 s/1 d/011221 0900
      Expected:

       Added appointment with Appointment ID: 1
       Patient ID: 1
       Staff ID: 1
       Date/Time: 01 Dec 21 0900HRS


   2. Test case: add p/1 s/2 d/011221 1000
      Expected:

       Added appointment with Appointment ID: 2
       Patient ID: 1
       Staff ID: 2
       Date/Time: 01 Dec 21 1000HRS


2. Valid appointment, but the time is corrected to the hour
   1. Test case: add p/1 s/2 d/011221 1105
      Expected:

      Added appointment with Appointment ID: 3
      Patient ID: 2
      Staff ID: 2
      Date/Time: 01 Dec 21 1100HRS


3. Adding a clashing appointment
   1. Test case (Invalid): add p/2 s/1 d/011221 0900
      Expected: Staff unavailable, appointment 1 at that time.
4. Adding an appointment with invalid date/time format
   1. Test case (Invalid): add p/1 s/2 d/01122123
      Expected: Incorrect Date/Time format.

Delete an appointment

1. Delete an existing appointment from the scheduler.
   1. Test case: delete 2
      Expected: Appointment with ID 2 deleted from system.
2. Delete a non-existent appointment from the scheduler.
   1. Test case: delete 89
      Expected: No appointment with ID 89 found.

Editing an appointment’s information

1. Edit an existing appointment’s information
   1. Test case: edit 3 s/1
      Expected:

      The information of appointment with ID 3 has been edited to:

       Patient ID: 2
       Staff ID: 1
       Date/Time: 01 Dec 21 1100HRS


2. Edit an appointment to clash with another appointment
   1. Test case (Invalid): edit 3 d/011221 0900
      Expected: Staff unavailable, appointment 1 at that time.

Viewing an appointment’s information

1. View an existing appointment’s information
   1. Test case: view 1
      Expected:

       Here is the requested appointment information:

       Appointment Id: 1
       Patient ID: 1
       Staff ID: 1
       Date/Time: 01 Dec 21 0900HRS


2. View a non-existing appointment’s information
   1. Test case (Invalid): view 9
      Expected: No appointment with ID 9 found.

Listing information of all appointments

1. List the information of all appointments, including those of hidden patients and medical staff.
   1. Test case: list
      Expected:

      Here is a list of all appointments:
      --------------------------------------------------------------------------------------------------
      |  ID  |     Date/Time     | Patient ID |     Patient Name     | Staff ID  |      Staff Name       |
      --------------------------------------------------------------------------------------------------
      | 1    | 01 Dec 21 0900HRS | 1          | John Xavier Doe      | 1        | Doctor One           |
      | 3    | 01 Dec 21 1100HRS | 2          | Jim Bob              | 1        | Doctor One           |
      --------------------------------------------------------------------------------------------------


Find appointments

• Prerequisites:
  • Execute the following commands first to populate the Scheduler with more data:
    1. switch 3
    2. switch 1
    3. show 2
    4. switch 2
    5. show 2
    6. switch 3
    7. add p/1 s/2 d/021221 0900
    8. add p/2 s/2 d/031221 0900
    9. add p/3 s/2 d/041221 0900
    10. add p/2 s/2 d/051221 0900
    11. add p/3 s/2 d/061221 0900

1. Find all appointments that involve a particular medical staff
   1. Test case: find s/2
      Expected:

      Here is a list of matched appointments:
       --------------------------------------------------------------------------------------------------
       |  ID  |     Date/Time     | Patient ID |     Patient Name     | Staff ID  |      Staff Name       |
       --------------------------------------------------------------------------------------------------
       | 4    | 02 Dec 21 0900HRS | 1          | John Xavier Doe      | 2        | Nurse One            |
       | 5    | 03 Dec 21 0900HRS | 2          | Jim Bob              | 2        | Nurse One            |
       | 6    | 04 Dec 21 0900HRS | 3          | Sasha Alexander      | 2        | Nurse One            |
       | 7    | 05 Dec 21 0900HRS | 2          | Jim Bob              | 2        | Nurse One            |
       | 8    | 06 Dec 21 0900HRS | 3          | Sasha Alexander      | 2        | Nurse One            |
       --------------------------------------------------------------------------------------------------


2. Find all appointments that involve a particular medical staff, after a certain date/time
   1. Test case: find s/2 a/051221 0000
      Expected:

       Here is a list of matched appointments:
        --------------------------------------------------------------------------------------------------
        |  ID  |     Date/Time     | Patient ID |     Patient Name     | Staff ID  |      Staff Name       |
        --------------------------------------------------------------------------------------------------
        | 7    | 05 Dec 21 0900HRS | 2          | Jim Bob              | 2        | Nurse One            |
        | 8    | 06 Dec 21 0900HRS | 3          | Sasha Alexander      | 2        | Nurse One            |
        --------------------------------------------------------------------------------------------------


Saving data

• Persistent storage can be found in the MedBotData directory, in the same directory as the JAR file.
• Inside MedBotData, there is appointment.txt, patient.txt and staff.txt.

1. Dealing with corrupted data files
   1. Loading from storage, an appointment with non-existent staff ID (staff ID 10)
      1. Test case: Replace the current contents in the text file appointment.txt to this:

          1 | 011221 0900 | 1 | 10
          3 | 011221 1100 | 2 | 1


         and then launch MedBot using the terminal.

         Expected:

          Hello, I'm MedBot!

          Error: Line 1 of MedBotData/appointment.txt is invalid!

          Please decide if you wish to:

          1. Enter 'exit' to exit MedBot to correct the storage files
          2. Enter other valid commands to OVERWRITE all invalid data!

          How can I help you today?


      • Do not enter any commands after this output. Close the terminal window and move on the next test case.

   2. Loading from storage, patients with invalid phone number and invalid NRIC.
      1. Test case: Replace the current contents in the text file patient.txt to this:

             1 | S7812345X | John Xavier Doe | 899999999 | john.doe@gmail.com | John Street, Block 1234, #01-01 | S
             2 | X | Jim Bob | X | jimbob@hotmail.com | X | H
             3 | A8367812K | Sasha Alexander | 91238765 | X | Mauville City 2nd Street | S


         Expected:

              Hello, I'm MedBot!

              Error: Line 1 of MedBotData/patient.txt is invalid!

              Error: Line 3 of MedBotData/patient.txt is invalid!

              Error: Line 1 of MedBotData/appointment.txt is invalid!

              Please decide if you wish to:

              1. Enter 'exit' to exit MedBot to correct the storage files
              2. Enter other valid commands to OVERWRITE all invalid data!

              How can I help you today?
